Sweet Spot

Faster than a 360 and less expensive than a 458, the F430 offers a compelling balance of price and performance.

Sweet Spot 1
June 11, 2015

Looking for a fast, rugged, reliable and relatively inexpensive Ferrari to race or take to the occasional track day? Look no further than the F430 Challenge.

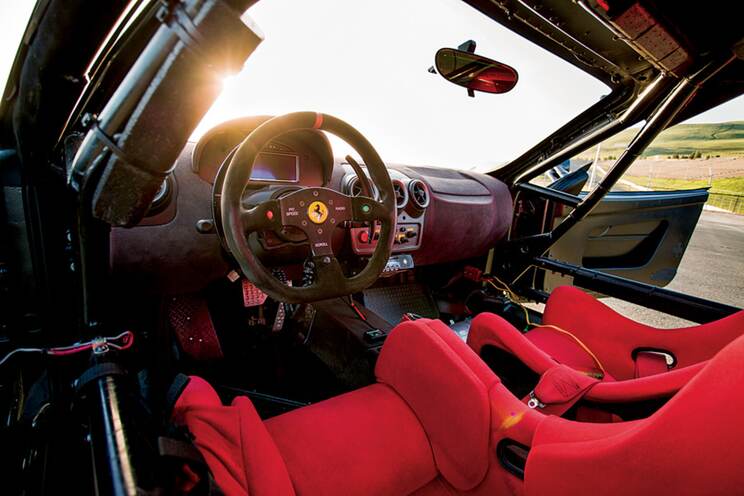

Introduced at the 2005 Frankfurt Auto Show, the F430 Challenge was the fourth car produced for the factory-run Ferrari Challenge spec series. Like the 348, F355 and 360 Challenge cars before it, the F430 Challenge was essentially a road car modified for track use. Underneath mostly stock bodywork lived the road-going F430’s all-aluminum chassis and suspension members, radiators, engine and transmission, even the engine and transmission control units. New, race-specific parts include the usual suspects: springs, shock absorbers, suspension bushings, brakes, wheels and slick tires, fuel cells and so on. The car’s interior likewise received a competition makeover, with fixed-back seats, racing harnesses, a fire-suppression system and a bolt-in steel roll cage.

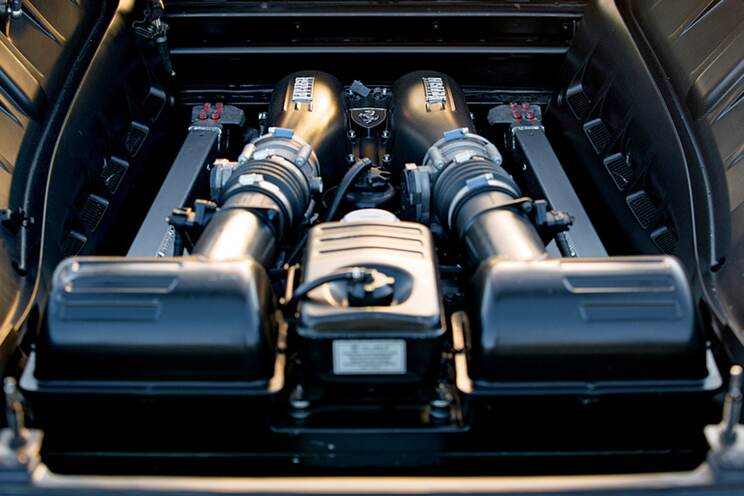

Ferrari didn’t stop there, however. The V8 engine, for example, received freer-flowing intake and exhaust systems, as well as beefier internal bearings and connecting rods. Fifth and sixth gears are different from the road car’s, and the differential’s final-drive ratio has been altered, too.

Sweet Spot 2

Ferrari did “dumb down” that differential, replacing the street car’s electronically-controlled version with a traditional mechanical limited-slip unit. On the other hand, the F430 Challenge features a number of improvements compared to earlier Challenge cars, including carbon-ceramic brakes, center-lock wheels and an onboard air-jack system.

The F430 Challenge raced in the factory series from 2005 until 2011, when it was replaced by the 458 Challenge. Today, in the U.S., these cars still race occasionally in SCCA and NASA—and they are a mainstay of the FORZA Tifosi Challenge series. Typical FTC grids include 12-15 F430 Challenges, and 25-30 cars competed in 2014. (You can learn more about the series at challengeclubracing.com.)

We spoke with Pete Spinella of Universal Autosports, which supports several cars in (and is a sponsor of) the FORZA Tifosi Challenge, to learn the ins and outs of the F430 Challenge, as well as what you need to know before buying one.

Sweet Spot 3

PROBLEM AREAS

WHEEL BEARINGS

The F430 Challenge’s wheel bearings are sturdier than those used on the road car but they still can rapidly wear out due to the rigors of racing. A very hard-driven car that bounds over every curb can go through a $2,000 set of bearings two or three times a season.

EXHAUST AND THROTTLE SENSORS

Exhaust thermocouples and throttle potentiometers fail regularly, and there’s usually no way to know that one’s about to go before it dies completely. Although a car will be able to limp back to the pits if this happens, the race will be lost—so Spinella recommends replacing them preemptively every few races, at a cost of around $300 each.

SHIFTER PARTS

The transmission’s internals are mostly bulletproof, but the hydraulics and electronics that run the F1 paddleshifter system wear out. Common failures include hydraulic pumps, clutch solenoids and actuator potentiometers; replacement costs for each of these components run roughly $1,000 plus labor.

Sweet Spot 4

CLUTCH COMPONENTS

While the clutch disc and pressure plate can last for several seasons, the rest of the clutch hardware—e.g., the throwout bearing and various seals and sensors—won’t. These parts are fairly inexpensive, but since it takes just as much time (around 18 hours) to replace only those components as it does to replace everything, it makes financial sense to do a full clutch job. The total cost is in the $8,000-10,000 range.

EXHAUST MANIFOLDS

As on the street car, the F430 Challenge’s exhaust manifolds are prone to breakage. A factory replacement manifold costs around $8,000, so many owners replace the entire exhaust system with a less-expensive (and lighter) aftermarket setup, which will run roughly $10,000.

FLUID LEAKS

If left sitting for as little as six months, the V8 engine can develop a serious, and potentially catastrophic, oil leak at the rear main seal. Fuel cells will also start to leak if the car isn’t used regularly.

Sweet Spot 5

RUNNING COSTS

It’s hard to generalize about the cost to race a Challenge car because so much is dependent on driving style. For example, tire and brake life are directly related to how hard a car is driven. But there are a few areas we can cover.

Race-car engines have a very limited life span compared to road-car units, and the F430 Challenge’s is no exception. Condition generally isn’t something that can be judged by simply driving the car; engines often make the most power shortly before they expire. Instead, Spinella recommends careful monitoring of the Ferrari V8 starting at 10,000 kilometers (all F430 Challenges read in kilometers, not miles), with regular leak-down and compression tests and dyno testing.

Most engines are ready for a “refresh” by 12,000 kms, while 15,000 kms is usually the outside limit. A typical refresh involves replacing the piston liners and rings, bearings and the entire valvetrain; most power loses come from valve-related issues. If there are no other problems, the block, heads, pistons, connecting rods and crank can usually be reused. Prices vary significantly depending on the work needed, but $30,000 is a good amount to budget.

Sweet Spot 6

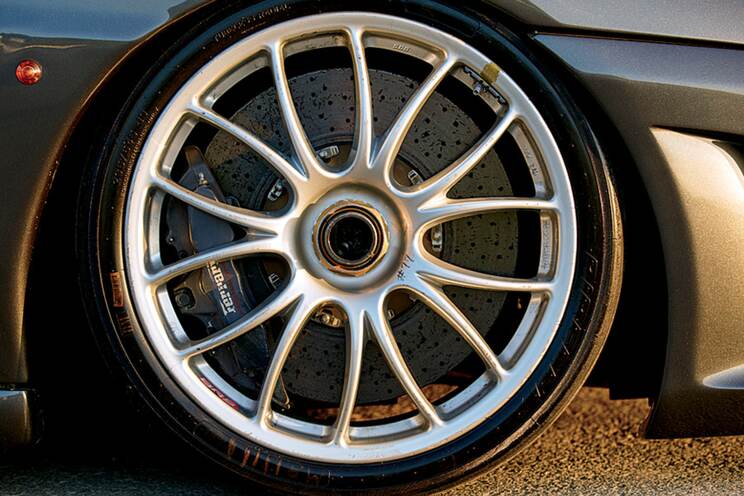

All F430 Challenges came from the factory with carbon-ceramic (CCM) brakes, which were mandatory in the factory Challenge series. Spinella estimates up to 90% of the cars have since been converted to steel brakes. The reason is cost: A full steel-brake conversion runs roughly $6,500, while replacing the CCM discs and pads can cost twice as much. CCM brakes do offer a significant weight advantage, but are more susceptible to physical damage.

BUYING ADVICE

F430 Challenge prices currently start at around $110,000 and run up to around $135,000. All Challenges are identical (it doesn’t matter what year a car was built or what country it was first delivered to), so the price range is all about condition and maintenance.

Unless the seller can prove a particular car was purchased and sent straight to the garage, assume that every F430 Challenge has been raced—and damaged. Bumpers, fenders and even doors are par for the course and shouldn’t be a concern, but make sure the chassis checks out. Cars that suffered severe chassis damage in period were usually written off, but there’s a chance a few repaired cars are out there. Repairing an aluminum chassis is far more difficult than repairing a steel one and requires specific expertise; you don’t want to buy a car that doesn’t have a perfect foundation.

Sweet Spot 7

The second most important thing to look for is regular servicing by a professional shop. A Challenge car can survive an unskilled driver, but expert care is the basis of a good ownership experience.

Be sure to check the number of kilometers on the engine. If a refresh is coming up, the sale price should reflect that expense. On a related note, review the service records to see what else might need repair or replacement soon.

An F430 Challenge will go through a lot of consumables in a season. A spares package, containing extra brake discs and pads, tires, wheels and so on, is a very desireable item, particularly since it will be cheaper (and easier) than buying all those items separately yourself. If the seller has a stash of bodywork, grab it, too.

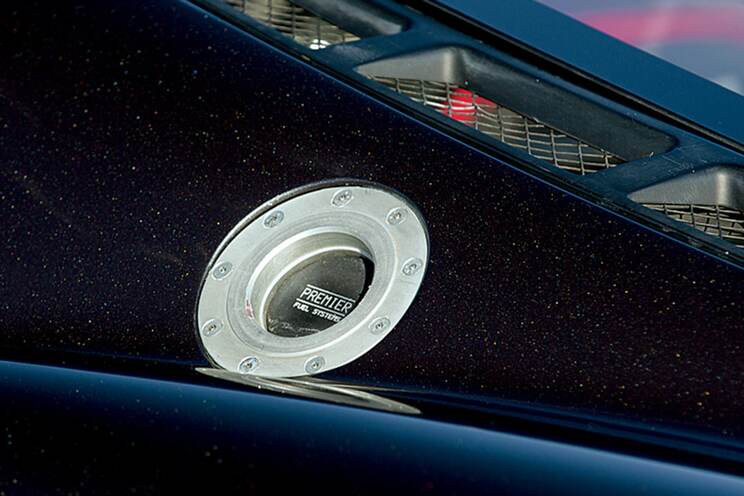

Make sure all of the car’s safety equipment is up to date. Seats and seat belts have an expiration date set by the manufacturer; be sure to follow it, both for your own safety and to be legal for a given racing series and/or track day. Fuel cells should be replaced every five years, fire-suppression systems need to be checked and serviced every three years.
